SHORE DUROMETER

SHORE DUROMETER

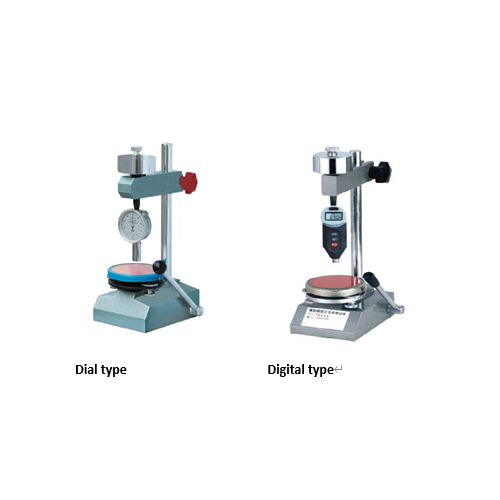

Model: PT-LX-A

Application:

PT-LX-A Shore Durometer is used to determine shore A hardness of vulcanized rubber and plastic product. This machine conforms to ISO 7619, GB/T 531, etc.



Features:

Simple structure, easy to operate, light weight

Can be hand-held operation or installed on the test rack to operate

With max. value locking function, automatically calculate the average value (for digital type)

With auto power-off function (for digital type)

Can connect to computer through RS232 communication cable (for digital type)



Technical Specification:

Model

PT-LX-A

Type

Dial type

Digital type

Range

0~100HA

0~100HA

Pressure needle travel

2.5mm

2.5mm

Size of needle head

φ0.79mm

φ0.79mm

Power supply

/

3×1.55V button cell

Dimensions

115×60×25mm

173×56×42mm

Weight

5kg

5kg



Standard Configuration:

No.

Item

Quantity

1

Durometer

1set

2

Test rack

1 pcs

3

Pack list

1 pcs

4

Quality certificate

1 pcs

5

User manual

1 pcs



Optional Configuration:

No.

Item

1


2
